Wavenet SC2202R 22/2C CMR Solid Unshielded Riser Security Cable - White - 1000 Ft
Alternative Views:
Price:
$
63.00
Product Code:
SC2202RXX1
Qty:
Description

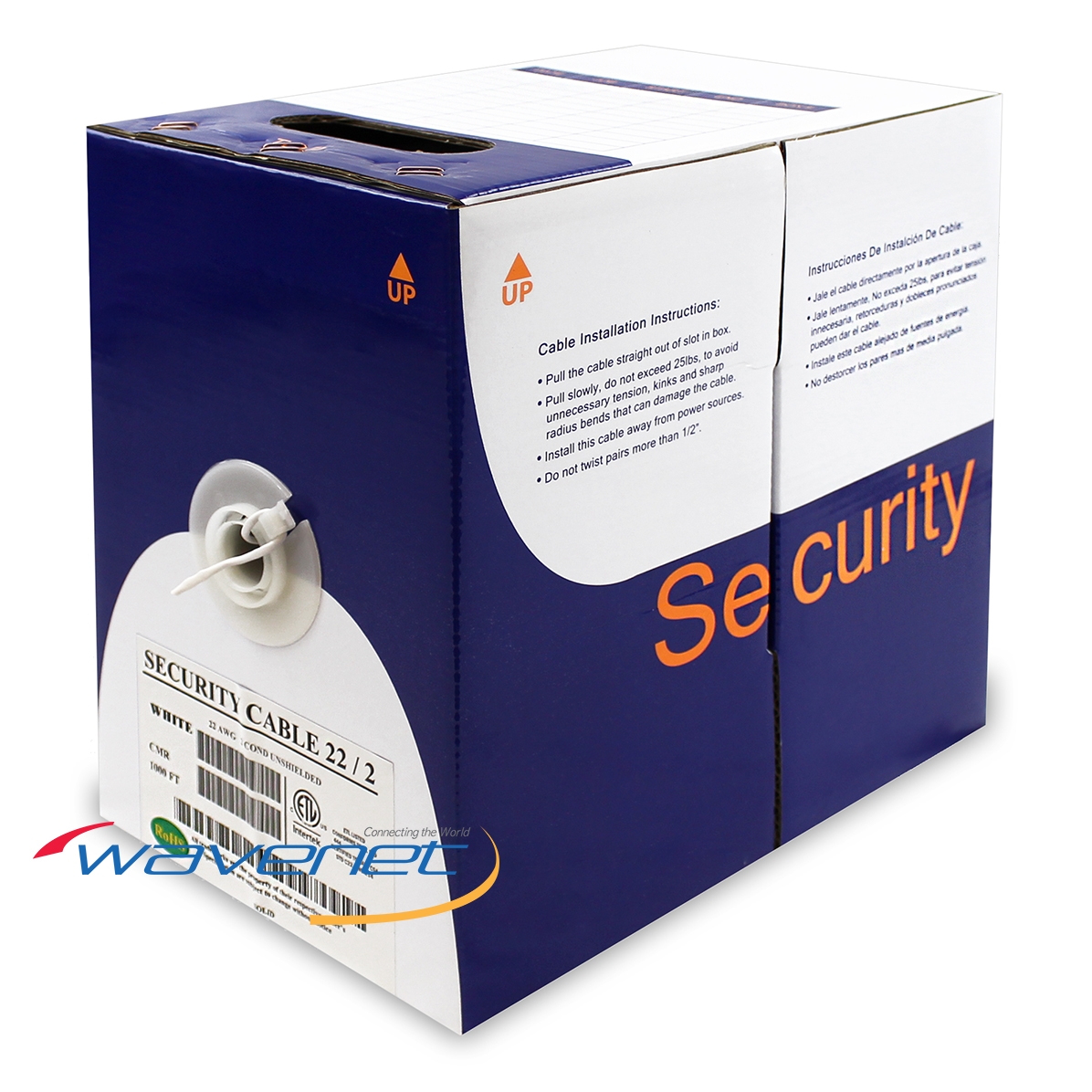

Wavenet SC2202R 22/2C CMR Solid Unshielded Riser Security Cable - White - 1000 Ft
This is a 2 conductor, 22 AWG wire wrapped in a single, easy to pull jacket. It is most commonly used to connect to alarm systems, security sensors, garage door opener controls; but can be used for any purpose. Commonly known as: Security Cable, Wavenet Cable, OSHA Cable, Communication Cable, Circuit Cable, CMR Cable.
Specifications:
Convenient, 1,000 Ft Easy Pull Box
AWG Size: 22
Number of Conductors: 2
Conductor Material: Bare Copper
Diameter: 0.61 (mm)
Insulation Material: Polyvinyl Chloride (PVC)
Insulation Diameter: 0.96 (mm)
Jacket Material: Polyvinyl Chloride (PVC)
Thickness: 0.45 (mm)
Overall Diameter: 2.80 (mm)
Rip Cord: Yes
Voltage: 300V RMS
Temperature Rating: 75C
