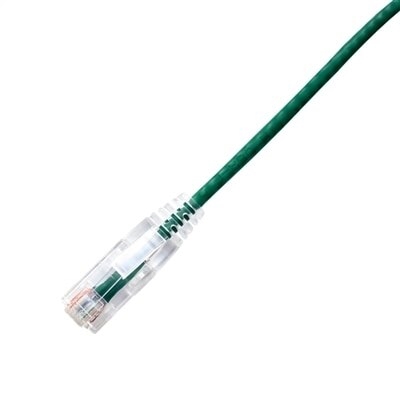

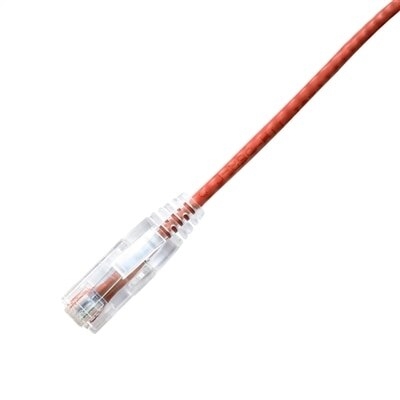

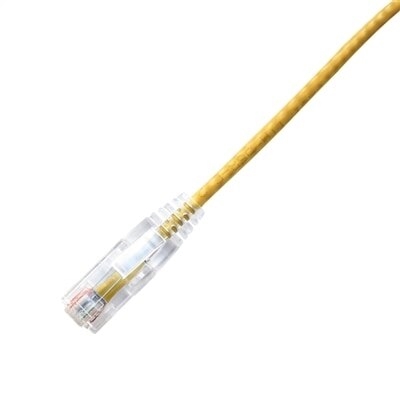

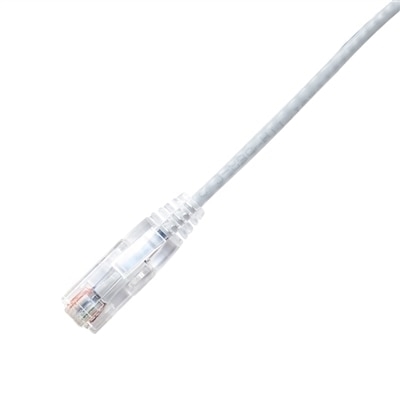

LYNN CPCS-6-003F CAT6 Choice Slim Ethernet (28AWG) Patch Cable - 3 ft
Alternative Views:
Price: $3.74
Your Price: $
3.55
Savings: $0.19
Product Code:
CPCS-6XX-003F
Color
Black
Blue
Gray
Green
Red
White
Yellow
Qty:
Description
LYNN CPCS-6-003F CAT6 Choice Slim Ethernet (28AWG) Patch Cable - 3 ft
Designed for 10/100/1000BASE-T and 10 Gbps networks. All network patch cables are pure copper wire with gold plated contacts. Every cable is UL listed, CM rated and Fluke tested ensuring the highest level of performance. Operating temperature of -4° to 140°. Data Rate Support of up to 10 Gbps and a Frequency Bandwidth of 500 MHz.
Features:
Less than half the size of standard CAT6 patch cables
40% smaller bend radius simplifies routing through panels
Low profile connector for easy installation in high-density data centers
Vibrant colors to easily color-code your network installation
Construction:
Cable Type: Slim Cat6 Booted
Conductor Type: 28 AWG Stranded Tinned Copper
Cable Jacket: PVC CM
Shielding Type: Unshielded (UTP)
Connectors: RJ45 Male 50mμ gold-plated
Insulation: High density polythylene, .005" nominal wall thickness
POE Specifications:
POE: 350mA, 12.95W, Max distance 40mPOE+: 600mA, 25.5w, Max distance 40mPOE++: 1,000mA, 96W, Max Distance 40m
Approvals:
UL Listed
RoHS Compliant
ANSI/TIA 568 C.2 Category 6
ISO 11801 Class E Edition 2.1
