Altronix SMP3 Power Supply Charger

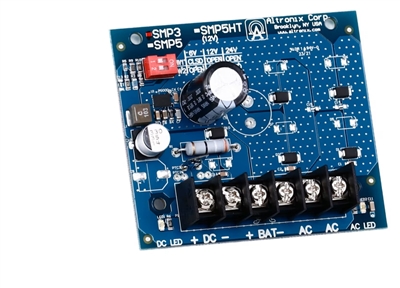

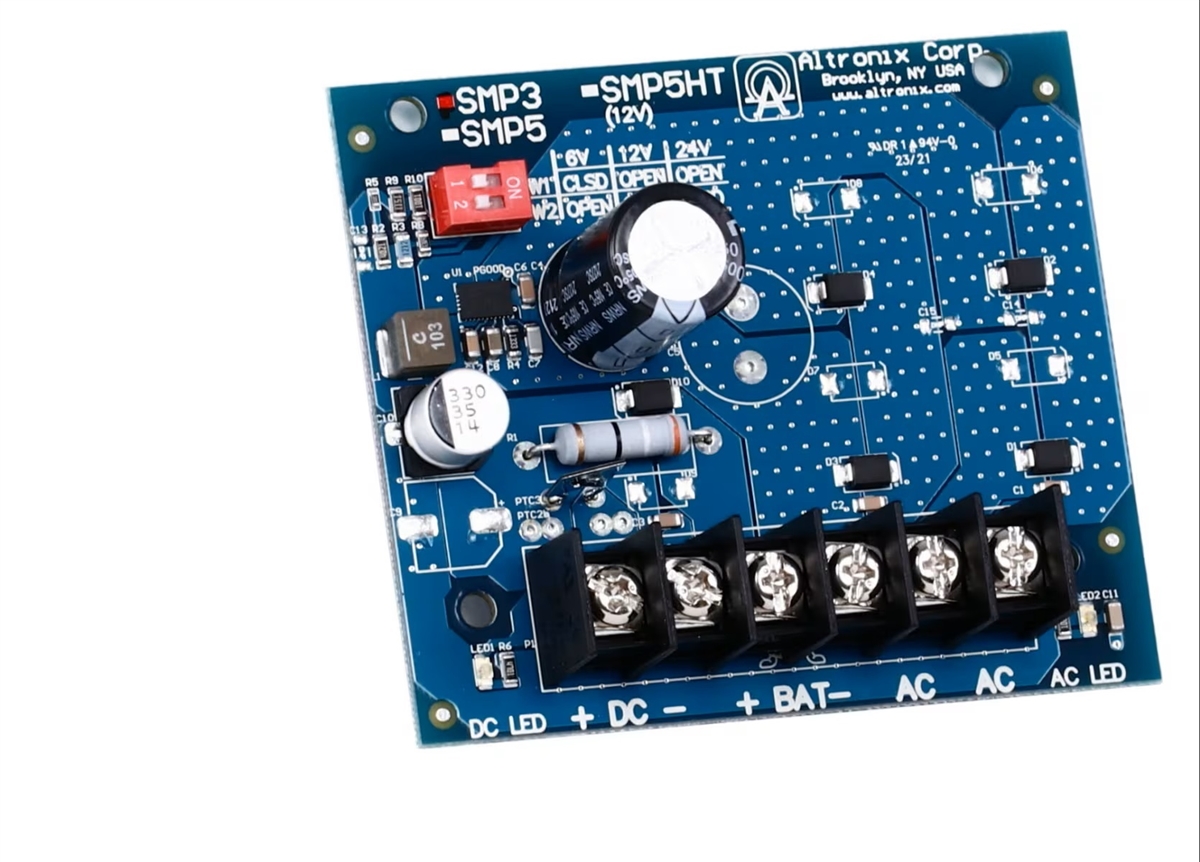

Altronix SMP3 Power Supply Charger (Single Output, 6/12/24VDC @ 2.5A, 24/28VAC, Board)



Our Price: $31.30

Product Code: SMP3
Qty:

Description

Altronix SMP3 Power Supply Charger (Single Output, 6/12/24VDC @ 2.5A, 24/28VAC, Board)

  • Altronix SMP3 power supply/charger converts a low voltage AC input into a 6VDC, 12VDC or 24VDC output.
  • This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.
Input:
  • 16VAC to 28VAC.
Output:
  • 6VDC, 12VDC or 24VDC selectable output.
  • 2.5A continuous supply current.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.
Battery Backup:
  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.
  • Battery short circuit protection (circuit breaker).
Visual Indicators:
  • AC input and DC output LED indicators.
Electrical:
  • Temperature:
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.):
    • 6VDC: 8 BTU/Hr.
    • 12VDC: 15 BTU/Hr.
    • 24VDC: 31 BTU/Hr.
  • System AC input VA requirement:
    • 6VDC/12VDC: 55.2VA.
    • 24VDC: 115VA.
Features:
  • Extremely compact design.
  • Includes battery leads.
  • Snap Track compatible (order Altronix model number ST3).
