Altronix RBSN Relay Module
Alternative Views:
Price: $15.17
Your Price: $
12.90
Savings: $2.27
Product Code:
RBSN
Qty:
Description

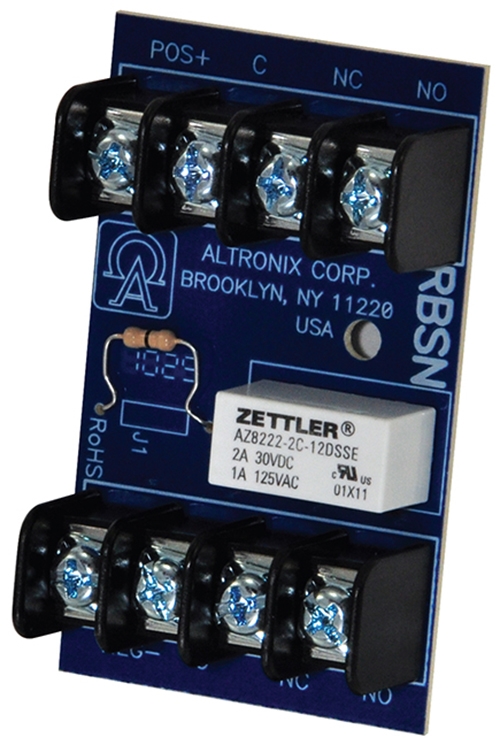

Altronix RBSN Relay Module (12/24VDC, DPDT Contacts @ 1A - 120VAC or 2A - 28VDC)
This rugged, reliable and dependable relay will handle many switching application. RBSN relay module is designed for continuous duty.
Input Voltage:
12VDC or 24VDC operation.
Current draw: 15mA.
Contact Rating:
1A/120VAC or 2A/28VDC DPDT contacts.
Temperature:
Operating -25ºC to 55ºC ( -13ºF to 131ºF).
Storage -25ºC to 70ºC ( -13ºF to 158ºF).
Relative Humidity 85% +/- 5%.
System AC input VA requirement:
12VDC: 1.8VA.
24VDC: 3.6VA.
