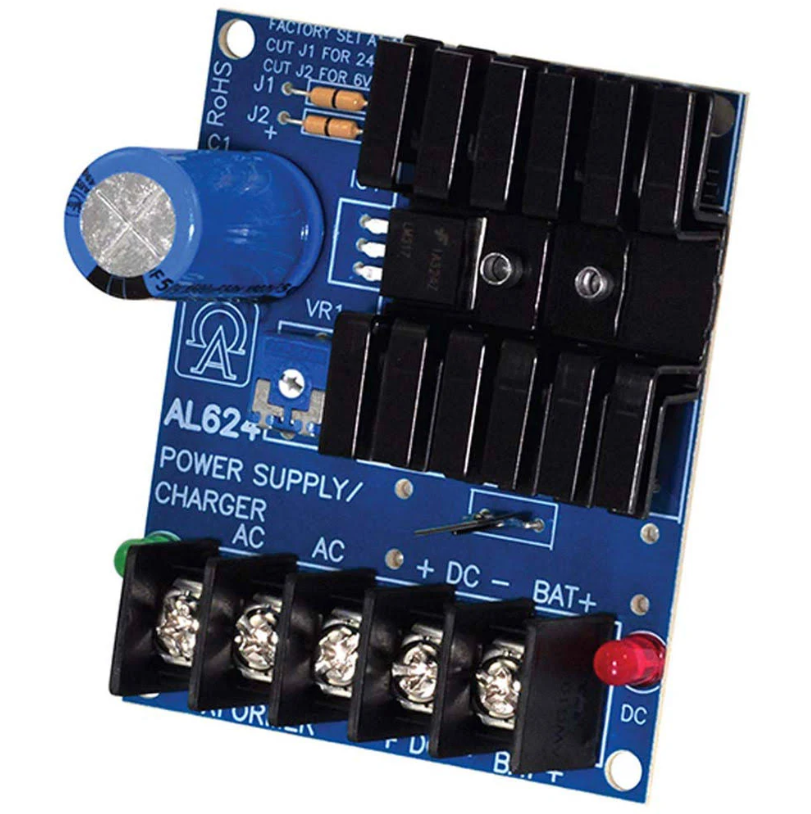

Altronix AL624 Linear Power Supply Charger
Altronix AL624 Linear Power Supply Charger (Single Class 2 Output, 6/12/24VDC @ 1.2A, 16 to 24VAC, Board)



Our Price: $16.98

Product Code: AL624
Qty:

Description

Altronix AL624 Linear Power Supply Charger (Single Class 2 Output, 6/12/24VDC @ 1.2A, 16 to 24VAC, Board)

  • Altronix AL624 power supply/charger converts a low voltage AC input into 6VDC, 12VDC or 24VDC output.
  • This general purpose power supply has a wide range of applications for access control, security, and CCTV system accessories that require additional power.
Input:
  • 16VAC to 24VAC, 20VA to 40VA.
Output:
  • Switch selectable 6VDC-12VDC-24VDC.
  • 6VDC or 12VDC @ 1.2A supply current or 24VDC @ 0.75A supply current.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.
Battery Backup:
  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.
  • PTC battery protection.
Visual Indicators:
  • AC input and DC output LED indicators.
Electrical:
  • Temperature:
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
  • BTU/Hr.:
    • 6VDC: 4 BTU/Hr.
    • 12VDC: 7 BTU/Hr.
    • 24VDC: 9 BTU/Hr.
  • System AC input VA requirement:
    • 16.5VAC/20VA: 138. 16.5VAC/40VA: 276.
    • 24VAC/20VA: 92. 24VAC/40VA: 192.05.
